OEM Manufacturer Factory API ANSI B16.9/ASTM A234 Wp11 Lr 45/90 Degree Forged Carbon/Stainless Steel Ss 304 306 Seamless Pipe Fitting Flange Tee Reducing Elbows

Short Description:

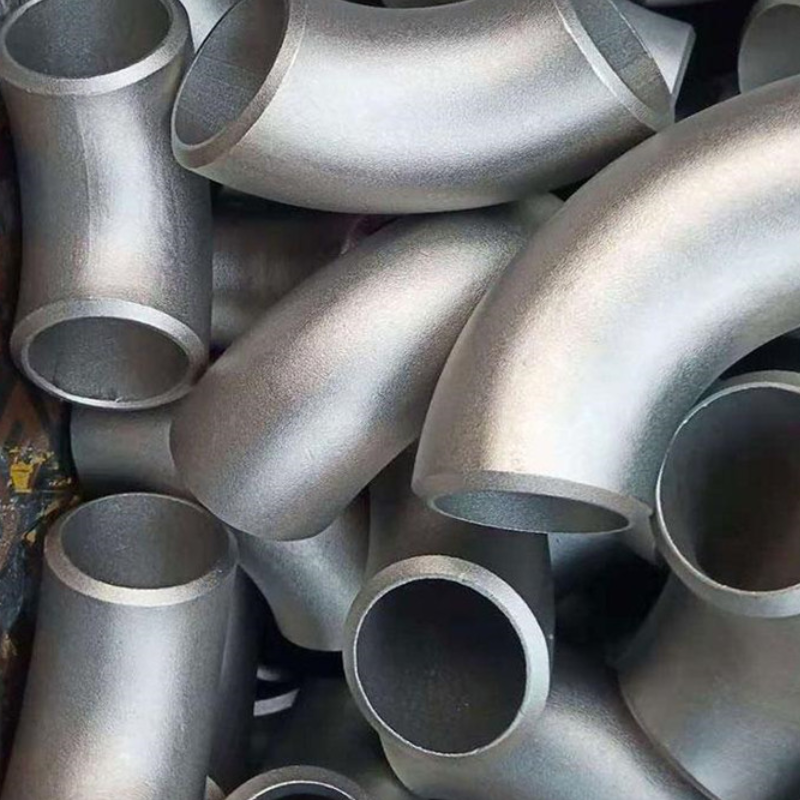

Carbon steel elbows are metal pipe fittings that change the direction of the lines on carbon steel pipes. The connection mode is wire buckle and welding. According to the Angle, there are 45° and 90°180° three most commonly used, in addition, according to the engineering needs also include 60° and other abnormal Angle elbow. Elbow materials are cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals and plastics. The connection modes with the pipe are: direct welding (the most common way) flange connection, hot melt connection, electric melt connection, thread connection and socket connection, etc. According to the production process can be divided into: welding elbow, stamping elbow, push elbow, casting elbow and so on. Other names: 90 degree bend, right Angle bend, love bend, etc.


Product Detail

Product Tags

Attaining consumer satisfaction is our firm’s purpose for good. We’ll make wonderful efforts to produce new and top-quality merchandise, meet up with your special necessities and supply you with pre-sale, on-sale and after-sale products and services for OEM Manufacturer Factory API ANSI B16.9/ASTM A234 Wp11 Lr 45/90 Degree Forged Carbon/Stainless Steel Ss 304 306 Seamless Pipe Fitting Flange Tee Reducing Elbows, Our Company Core Principle: The prestige first ;The quality guarantee ;The customer are supreme.
Attaining consumer satisfaction is our firm’s purpose for good. We’ll make wonderful efforts to produce new and top-quality merchandise, meet up with your special necessities and supply you with pre-sale, on-sale and after-sale products and services for China A234 Wpb Fittings and Bend Pipe, Now, we professionally supplies customers with our main products And our business is not only the “buy” and “sell”, but also focus on more. We target to be your loyal supplier and long-term cooperator in China. Now, We hope to be the friends with you.
In simple terms, steel pipe elbow is a type of pipe fitting connected between two pipes. The main purpose is to change the course of direction. As we know, steel elbow can be classified into different degrees, normally is 45 degree steel pipe elbow, 90 degree steel pipe elbow and 180 degree steel pipe elbow. Other degree like 60° or 120° also used in pipeline systems in case special requirements.
J83HU9D80NS3UNVG`~$00GR

Carbon steel elbow is divided first by its radius of curvature, which can be divided into long radius elbow and short radius elbow. Long radius elbow means that its radius of curvature is equal to 1.5 times the outside diameter of the pipe, that is, R=1.5D. A short radius elbow is one whose radius of curvature is equal to the outside diameter of the pipe, i.e. R=1.0D. (D is the diameter of the bend and R is the radius of curvature. D can also be expressed by multiples.) According to the pressure grade, there are about 17 kinds of pipes, which are the same with the American pipe standards, including: Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS; Sch80, Sch100, Sch120, Sch140, Sch160, XXS, among which STD and XS are the most commonly used. According to the Angle of the elbow, there are 45° elbow, 90° elbow and 180° elbow. The executive standards include GB/T12459-2005, GB/T13401-2005, GB/T10752-1995, HG/T21635-1987, D-GD0219, etc.
90elbow
Carbon steel material can be divided into
10# 20# A3 Q235A 20g Q345B 20G 16Mn ASTM A234 ASTM A105 st37 ASTM A403
The elbow made of these materials can be called carbon steel elbow according to the Angle: 45°, 90°, 180° these three commonly used elbow, in addition to engineering needs, can be specially customized such as 60° or other angles.
Connection with carbon steel pipe: welding, flange connection, thread connection, socket connection and other forms.
According to the form of the process can be divided into: welding elbow, stamping elbow, casting elbow, etc.
Purpose: Connect two pipes, make the pipe change direction, to 45° or 180° and 90° direction or other angles.
Manufacturing standards: national standard, American standard, Japanese standard, German standard, Russian standard.
The basic technological process of carbon steel elbow is as follows: first, weld a polygonal ring shell with a cross section or a polygonal fan-shaped shell with both ends closed. After the internal pressure medium is flooded, internal pressure is applied. Under the action of internal pressure, the cross section gradually becomes a circle from a polygon to a circular ring shell. A circular ring can be cut into 4 90° elbows or 6 60° elbows or other specifications as required. This process is suitable for making large elbows of any specification where the ratio of the middle diameter to the inner diameter of the elbow is greater than 1.5 times. It is an ideal method for making large carbon steel elbows.90elbow
The advantages of the carbon steel elbow production process are mainly shown in the following aspects:
(1) No tube billet as raw material, can save the cost of pipe making equipment and mold, and can get any large diameter and relatively thin wall thickness of carbon steel elbow.
(2) The blank is flat or developable surface, so the blanking is simple, the precision is easy to ensure, and the assembly and welding are convenient.
(3) Due to the above two reasons, the manufacturing cycle can be shortened and the production cost is greatly reduced. Since no special equipment is required, it is especially suitable for on-site processing of large carbon steel elbows.
(4) Carbon steel elbow is suitable for pipeline series of oil, natural gas, chemical, hydropower, construction and boiler industries.Attaining consumer satisfaction is our firm’s purpose for good. We’ll make wonderful efforts to produce new and top-quality merchandise, meet up with your special necessities and supply you with pre-sale, on-sale and after-sale products and services for OEM Manufacturer Factory API ANSI B16.9/ASTM A234 Wp11 Lr 45/90 Degree Forged Carbon/Stainless Steel Ss 304 306 Seamless Pipe Fitting Flange Tee Reducing Elbows, Our Company Core Principle: The prestige first ;The quality guarantee ;The customer are supreme.
OEM Manufacturer China A234 Wpb Fittings and Bend Pipe, Now, we professionally supplies customers with our main products And our business is not only the “buy” and “sell”, but also focus on more. We target to be your loyal supplier and long-term cooperator in China. Now, We hope to be the friends with you.
